Features
-
MOTOTRBO DP4000Ex Accessories
MOTOTRBO DP4000 Series Accessories Fact Sheet
-

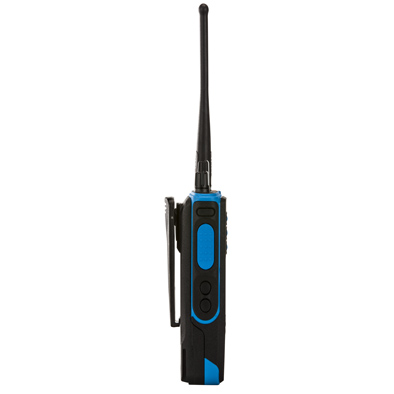

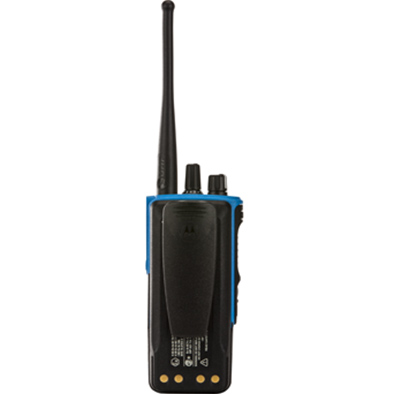

MOTOTRBO DP4000Ex Series
MOTOTRBO DP4000Ex Series Brochure
Best-in-class Audio
Loud front-facing speaker and Intelligent Audio feature automatically adjusts the radio volume according to the environment’s noise level.
Day/Night Mode on Display
This display has improved resolution for easier viewing even in broad daylight. It also also features a night mode that makes the screen easier to read in dark environments.
Productivity-enhancing Data Applications
Features the industry’s largest application developer program to enable a wide variety of customised applications including: location tracking, email gateways, dispatch, telephony, man-down and work order ticket management.
Capacity Plus
Single-site digital trunking system that maximises the capacity of your MOTOTRBO system. Use it to enable a high volume of voice and data communication for over a thousand users at a single site without adding new frequencies.
Linked Capacity Plus
Linked Capacity Plus is an entry level, multi-site digital trunking system configuration for the MOTOTRBO platform. It leverages the high capacity of Capacity Plus, with the wide area coverage capabilities of IP Site Connect to keep your staff at various locations connected with an affordable high capacity, wide area trunking solution.
Rugged Design
Tightly sealed against wind and dust, and submersible in up to one meter of water for 30 minutes (IP67).

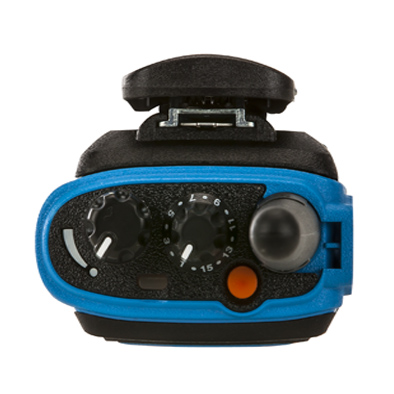

Emergency Button
Orange button on the top of the radio can be programmed to send an alert to a supervisor or dispatcher during an emergency situation.
Large, Full-colour Display
Features a 5-line color display with a flexible menu-driven interface. Icons and large easy-to-use navigation buttons ease message reading and menu navigation.
Integrated GPS
Locate mobile work teams using integrated GPS.
Text Messaging
Use text messaging when discretion is required or routine communication needs to be delivered without interrupting workers or guests.
IP Site Connect
A digital solution that uses the internet to extend the voice and data capabilities of MOTOTRBO. Use it to link up to 15 sites for communication among geographically dispersed locations, to create wide area coverage or enhance coverage at a single site with physical barriers.
Basic or Enhanced Privacy
Built-in scrambling for increased security.
Transmit Interrupt
Enables a user to interrupt another radio conversation to deliver critical communication exactly when and where it’s needed.
Specifications
Performance Characteristics
-
Frequency band
VHF, UHF
-
Repeater capable
Yes
-
Battery life (based on a 05 05 90 duty cycle)
19 hours in digital mode, 16 hours in analogue mode
-
Standard battery chemistry type
Lithium Ion
-
1 Watt
Yes
Physical Characteristics
-
Emergency button
Yes
-
Keypad
Full
-
Display
Full, Color, Day and night mode
-
Weight (with standard battery)
482.5g (17 oz)
-
Dimensions H x W x D (with standard battery)
138.5 x 56.7 x 39.8 mm (5.45 x 2.23 x 1.57 in)
Radio Features
-
Transmit interrupt
Yes
-
Digital private line
Yes
-
Private line
Yes
-
Monitor Permanent (Sticky) Monitor
Yes
-
Lone worker
Yes
-
GPS capable
Yes
-
Voice announcement
Yes
-
Signalling
Signalling 5-tone, MDC (Encode/Decode), Quik-Call II (Encode/Decode), DTMF Encode
-
Intelligent audio
Yes
-
Programmable buttons
Yes
-
Voice operated transmit (VOX)
Yes
-
Time out timer
Yes
-
Talkaround
Yes
-
Text messaging capable
Yes
-
Scan types
Normal, Priority, Dual priority, Nuisance channel delete, Talk group, All group, System, Home revert
-
Phone book
Yes
-
Group call
Yes
-
One to one calling
Yes
-
Missed call alerts
Yes
-
CPS (Customer Programming Software)
Yes
-
Channel spacing
12.5, 25, 20
-
Number of channels
1000
-
Channel scan
Yes
-
Caller ID
Yes
-
Call tones
Yes
-
Call forward
Yes
-
Busy channel lockout
Yes
-
Integrated voice and data
Yes
Technology
-
System type
TDMA, Capacity Plus, Linked Capacity Plus, IP Site Connect
-
Digital technology
Yes
User Environment
-
ATEX IECEx
Yes
-
Submersible
Yes
-
Intrinsically safe
Yes
-
Mil spec
810 C, 810 D, 810 E, 810 F, 810 G
-
Noise reduction software
Yes
-
IP Standards
IP67
Warranty
-
Standard warranty
2 years
